99 4615 00 12 | binder

Plug, 12 pole, solder connection, screw locking, straight, 99 4615 00 12

Order No.: 67F186
EAN: 4099889702170
MPN:
99 4615 00 12
Series: 623

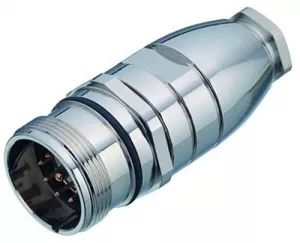

99 4615 00 12 binder Other Circular Connectors Image 1

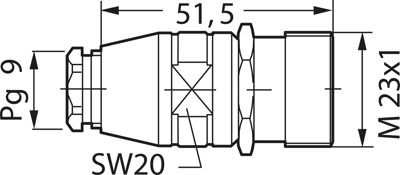

99 4615 00 12 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
24.4664 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
24.47 € *
Price list
Quantity
Price per unit*
1 pcs.
24.4664 €
10 pcs.
23.0027 €
25 pcs.
21.6223 €
50 pcs.
20.3252 €
*incl. VAT plus shipping costs
**Subject to prior sale

Industrial circular connector, IP 67, type Binder 623.

With M 23 thread locking and Pg 9 cable bushing; Contacts: CuZn. Contact diameter: 1.0 mm. Finish: gold-plated. Cable connection: 1.0 mm². Contact carrier: PET to UL 94 V-0. Cable housing: nickel-plated brass. Flanged housing: zinc die-cast, nickel-plated. Cable outlet: 6.0 to 10 mm. Degree of protection in mated state (IEC 60529): IP 67. Rated voltage: 150 V. Test voltage: 1750 V. Rated current (40 °C): 8.0 A. Contact resistance: max. 3.0 mohm. Insulation resistance: at least 10 Gohm. Operating temperatures: - 40 to +125 °C.

Coupling plugs, non-shielded, type 623.

With fixed thread for screw lock..

Technical attributes (type, number of poles): 99-4615-00-12, 12-pole

Technical specifications
Version Stecker
Additional parts bestückt
Contact connection Lötanschluss
contact surface vergoldet
Assembly Kabelmontage
Orientation gerade
Pin number 12-polig
Type of locking Schraubverriegelung
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
