99 4621 00 12 | binder

Plug, 12 pole, solder connection, screw locking, straight, 99 4621 00 12

Order No.: 67F192
EAN: 4099889702194
MPN:
99 4621 00 12
Series: 623
binder

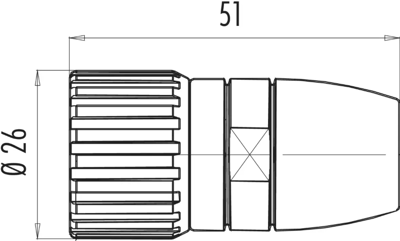

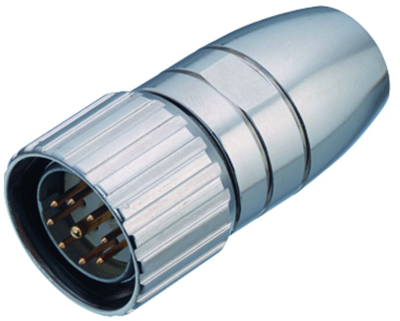

99 4621 00 12 binder Other Circular Connectors Image 1
99 4621 00 12 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
28.9408 € *
Available: 3 pcs.
Leadtime: On Request **
Total Price:
28.94 € *
Price list
Quantity
Price per unit*
1 pcs.
28.9408 €
5 pcs.
27.2034 €
15 pcs.
26.1681 €
50 pcs.
25.0138 €
150 pcs.
23.9666 €
*incl. VAT plus shipping costs
**Subject to prior sale

Industrial circular connector, IP 67, type Binder 623.

9, 12 and 16-pole. With M 23 thread locking and Pg 9 cable bushing; Contacts: CuZn. Contact diameter: 1.0 mm (version with 9 poles one contact, 2.0 mm). Finish: gold-plated. Cable connection: solder contacts for 9 poles max. 1.5 mm² (2.0-mm diameter 2.5 mm²), for 12 to 16 poles 1.0 mm². Contact carrier: PET to UL 94 V-0. Cable housing: nickel-plated brass. Flanged housing: zinc die-cast, nickel-plated. Cable outlet: 6.0 to 10 mm. Degree of protection in mated state (IEC 60529): IP 67. Rated voltage: 9 poles = 250 V, 12 to 16 poles = 150 V. Test voltage: 9 poles = 2950 V, 12 to 16 poles = 1750 V. Rated current (40 °C): 8.0 A (for 2.0-mm diameter 20 A). Contact resistance: max. 3.0 mohm. Insulation resistance: at least 10 Gohm. Operating temperatures: - 40 to +125 °C.

Cable plug connectors, shielded, type 623.

With wrapping nut for screw lock.

Technical attributes (type, number of poles): 99-4621-00-12, 12-pole

Technical specifications
Version plug
Additional parts equipped
Contact connection solder connection
contact surface gold-plated
Assembly cable assembly
Orientation straight
Pin number 12 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
