99 4627 00 12 | binder

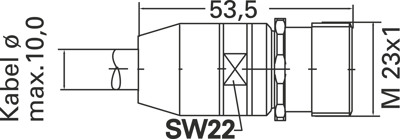

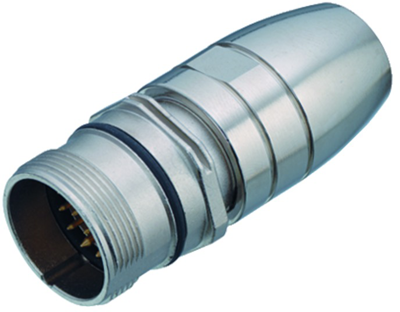

Plug, 12 pole, solder connection, screw locking, straight, 99 4627 00 12
Unit Price (€ / pc.)
28.1316 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
28.13 € *
Price list
Quantity
Price per unit*
1 pcs.
28.1316 €
10 pcs.
26.4537 €
25 pcs.
24.8710 €
50 pcs.
23.3597 €
*incl. VAT plus shipping costs
**Subject to prior sale
Industrial circular connector, IP 67, type Binder 623.
With M 23 thread locking and Pg 9 cable bushing; Contacts: CuZn. Contact diameter: 1.0 mm. Finish: gold-plated. Cable connection: 1.0 mm². Contact carrier: PET to UL 94 V-0. Cable housing: nickel-plated brass. Flanged housing: zinc die-cast, nickel-plated. Cable outlet: 6.0 to 10 mm. Degree of protection in mated state (IEC 60529): IP 67. Rated voltage: 150 V. Test voltage: 1750 V. Rated current (40 °C): 8.0 A. Contact resistance: max. 3.0 mohm. Insulation resistance: at least 10 Gohm. Operating temperatures: - 40 to +125 °C.
Coupling plugs, shielded, type 623.
With fixed thread for screw lock..
Technical attributes (type, number of poles): 99-4627-00-12, 12-pole
Technical specifications
| Ausführung | Stecker | |
| Bestückung | bestückt | |
| Kontaktanschluss | Lötanschluss | |
| Kontaktoberfläche | vergoldet | |
| Montage | Kabelmontage | |
| Orientierung | gerade | |
| Polzahl | 12-polig | |
| Verriegelung | Schraubverriegelung |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
