99 4809 00 04 | binder

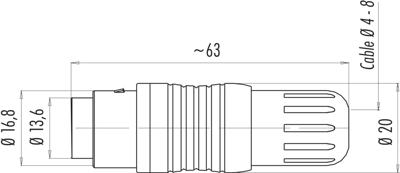

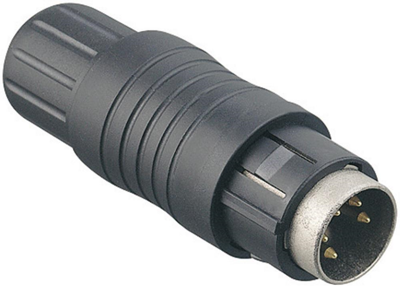

Plug, 4 pole, solder cup, push pull, straight, 99 4809 00 04
Unit Price (€ / pc.)
19.4208 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
19.42 € *
Price list
Quantity
Price per unit*
1 pcs.
19.4208 €
10 pcs.
17.0884 €
50 pcs.
15.9222 €
150 pcs.
15.2320 €
500 pcs.
14.4466 €
*incl. VAT plus shipping costs
**Subject to prior sale
Miniature circular connector with push-pull lock, type Binder 440.
With optional shielding and excellent EMC properties; Connection type: soldering. Terminal cross-section: max. 0.75 mm². Cable entry: 4.0 to 8.0 mm. Rated voltage: 250 V. Rated current (at +40 °C): 6,0 A. Contact resistance: < 3.0 mohm. Insulation resistance: > 10 Gohm. Degree of protection (IEC 60529): IP 67. Contact pin material: CuZn. Receptacle: CuSn. Finish: gold-plated. Cable connector housing: PA 66, glass fiber-reinforced. Flange connector: CuZn, nickel-plated. Operating temperatures: - 25 to +95 °C.
Cable plug connectors.
Technical attributes (type, number of poles, rated voltage/rated current): 99-4809-00-04, 4-pole, 250 V/6.0 A
Technical specifications
| Version | plug | |
| Additional parts | equipped | |
| Shell Material | PA | |
| Cable diameter | 4 to 8 mm | |
| Contact connection | solder cup | |
| contact surface | gold-plated | |
| Cable cross-section | 0.75 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Type of locking | push pull |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
