99 5102 60 02 | binder
Jack, 2 pole, solder connection, screw locking, straight, 99 5102 60 02
Unit Price (€ / pc.)
16.3149 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
16.31 € *
Price list
Quantity
Price per unit*
1 pcs.
16.3149 €
10 pcs.
15.1725 €
50 pcs.
14.1134 €
100 pcs.
13.1257 €
*incl. VAT plus shipping costs
**Subject to prior sale

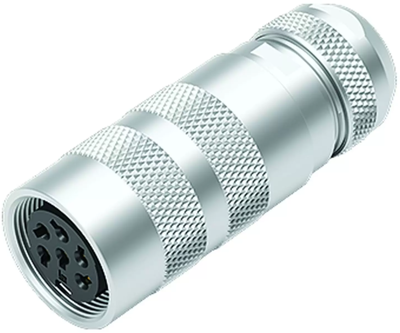

Female cable connector, 99 5102 60 02, binder

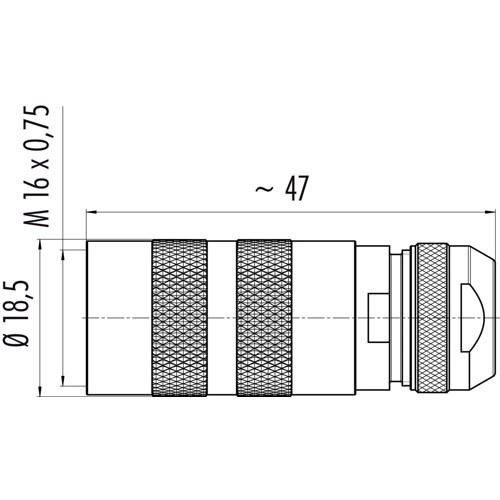

M16 IP67 Female cable connector, Contacts: 2, 4.1-7.8 mm, shieldable, solder, IP68.
Technical specifications
| Version | Kupplung | |
| Cable cross-section | 0,75 mm² | |
| Pin number | 2-polig | |
| Orientation | gerade | |
| Contact connection | Lötanschluss | |
| Type of locking | Schraubverriegelung | |
| Cable diameter | 4,1 bis 7,8 mm | |
| Assembly | Kabelmontage | |
| Additional parts | bestückt | |
| contact surface | versilbert | |
| Shell Material | CuZn |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
