99 5105 00 03 | binder
Plug, 3 pole, solder connection, screw locking, straight, 99 5105 00 03
Unit Price (€ / pc.)
16.4101 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
16.41 € *
Price list
Quantity
Price per unit*
1 pcs.
16.4101 €
10 pcs.
14.4347 €
50 pcs.
13.4470 €
150 pcs.
12.8639 €
500 pcs.
12.1975 €
*incl. VAT plus shipping costs
**Subject to prior sale

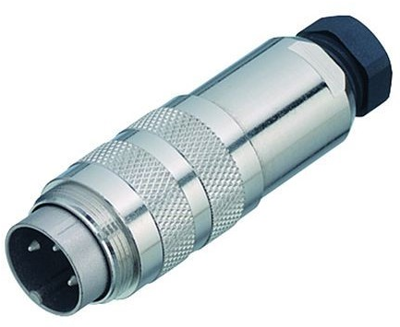

Miniature connector, 99-5105-00-03, BINDER
M16 IP67 Male cable connector, Contacts: 3 DIN, 4.0-6.0 mm, shieldable, solder, IP67, UL.
Features
- Contact material: CuZn
- Degree of protection: IP67
- Pollution degree: 1
- Overvoltage category: I
Technical specifications
| Version | plug | |
| Contact connection | solder connection | |
| contact surface | silver-plated | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 3 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
