99 5105 60 03 | binder
Plug, 3 pole, solder connection, screw locking, straight, 99 5105 60 03
Unit Price (€ / pc.)
16.3030 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
16.30 € *
Price list
Quantity
Price per unit*
1 pcs.
16.3030 €
10 pcs.
15.1606 €
50 pcs.
14.0896 €
100 pcs.
13.1019 €
*incl. VAT plus shipping costs
**Subject to prior sale

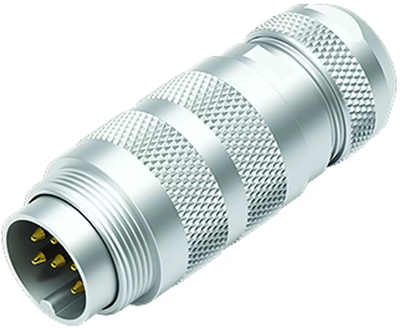

Male cable connector, 99 5105 60 03, binder
M16 IP67 Male cable connector, Contacts: 3 DIN, 4.1-7.8 mm, shieldable, solder, IP68.
Technical specifications
| Version | plug | |
| Additional parts | equipped | |
| Shell Material | CuZn | |
| Cable diameter | 4.1 to 7.8 mm | |
| Contact connection | solder connection | |
| contact surface | silver-plated | |
| Cable cross-section | 0.75 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 3 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
