99 5109 210 04 | binder

Plug, 4 pole, screw connection, screw locking, straight, 99 5109 210 04

Order No.: 70P0115
EAN: 4099891693701
MPN:
99 5109 210 04
Series: 423
binder

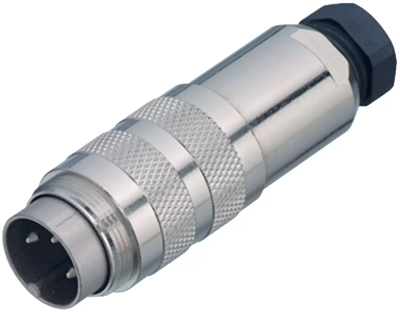

99 5109 210 04 binder Other Circular Connectors Image 1

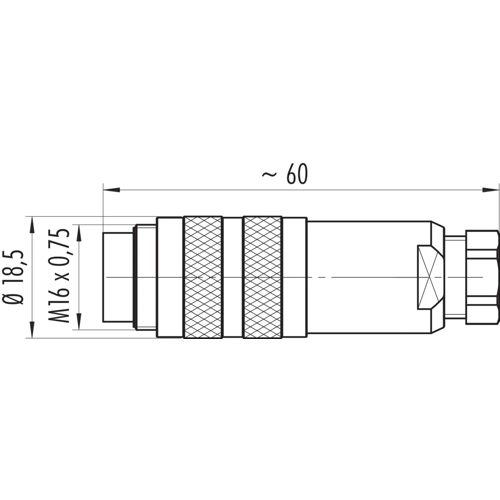

99 5109 210 04 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
22.1816 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
22.18 € *
Price list
Quantity
Price per unit*
1 pcs.
22.1816 €
10 pcs.
20.8607 €
50 pcs.
19.6112 €
100 pcs.
18.4331 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male cable connector, 99 5109 210 04, binder

M16 IP67 Male cable connector, Contacts: 4, 4.0-6.0 mm, shieldable, screw clamp, IP67, UL.

Technical specifications
Version plug
Additional parts equipped
Shell Material CuZn
Cable diameter 4 to 6 mm
Contact connection screw connection
contact surface silver-plated
Cable cross-section 0.25-1.5 mm²
Assembly cable assembly
Orientation straight
Pin number 4 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
