99 5171 60 08 | binder

Plug, 8 pole, solder connection, screw locking, straight, 99 5171 60 08

Order No.: 70P2188
EAN: 4099891705343
MPN:
99 5171 60 08
Series: 423
binder

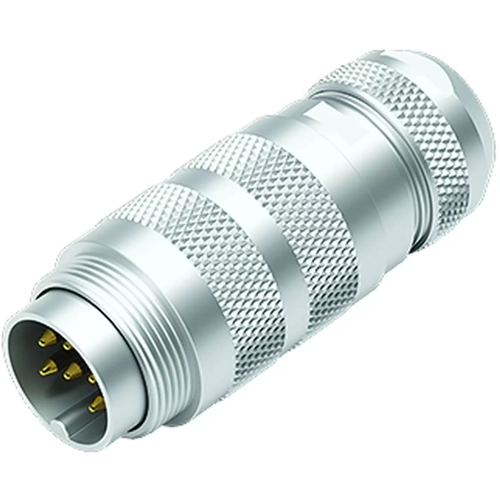

99 5171 60 08 binder Other Circular Connectors Image 1
99 5171 60 08 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
18.2665 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
18.27 € *
Price list
Quantity
Price per unit*
1 pcs.
18.2665 €
10 pcs.
17.1598 €
50 pcs.
16.1364 €
100 pcs.
15.1725 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male cable connector, 99 5171 60 08, binder

M16 IP67 Male cable connector, Contacts: 8 DIN, 4.1-7.8 mm, shieldable, solder, IP68.

Technical specifications
Version plug
Additional parts equipped
Shell Material CuZn
Cable diameter 4.1 to 7.8 mm
Contact connection solder connection
contact surface silver-plated
Cable cross-section 0.75 mm²
Assembly cable assembly
Orientation straight
Pin number 8 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
