99 5606 19 03 | binder
Jack, 3 pole, solder connection, screw locking, straight, 99 5606 19 03
Unit Price (€ / pc.)
17.3502 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
17.35 € *
Price list
Quantity
Price per unit*
1 pcs.
17.3502 €
10 pcs.
16.1364 €
50 pcs.
15.0059 €
100 pcs.
13.9706 €
*incl. VAT plus shipping costs
**Subject to prior sale

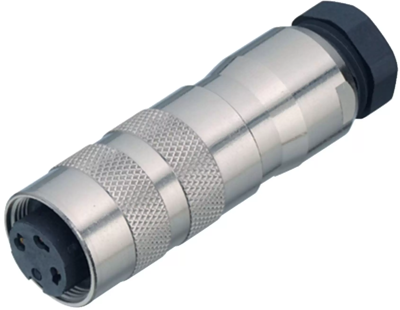

Female cable connector, 99 5606 19 03, binder
M16 IP67 Female cable connector, Contacts: 3 DIN, 6.0-8.0 mm, shieldable, solder, IP67, UL.
Technical specifications
| Ausführung | Kupplung | |
| Bestückung | bestückt | |
| Gehäusematerial | CuZn | |
| Kabeldurchmesser | 6 bis 8 mm | |
| Kontaktanschluss | Lötanschluss | |
| Kontaktoberfläche | vergoldet | |
| Leiterquerschnitt | 0,75 mm² | |
| Montage | Kabelmontage | |
| Orientierung | gerade | |
| Polzahl | 3-polig | |
| Verriegelung | Schraubverriegelung |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
