99 5609 75 04 | binder

Angle plug, 4 pole, solder connection, screw locking, angled, 99 5609 75 04

Order No.: 70P0200
EAN: 4099891694548
MPN:
99 5609 75 04
Series: 423
binder

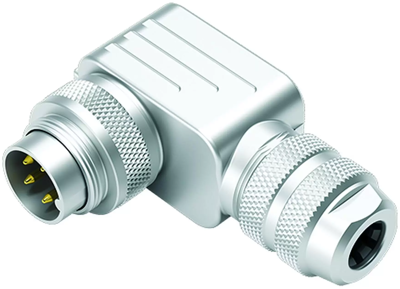

99 5609 75 04 binder Other Circular Connectors Image 1

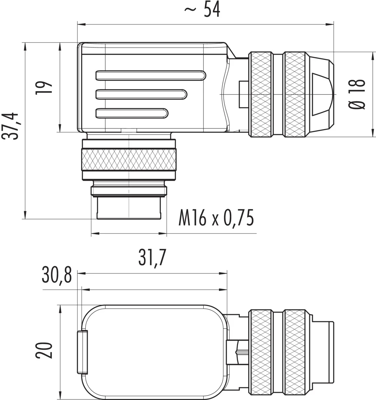

99 5609 75 04 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
17.9809 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
17.98 € *
Price list
Quantity
Price per unit*
1 pcs.
17.9809 €
10 pcs.
16.9099 €
50 pcs.
15.8865 €
100 pcs.
14.9345 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male angled connector, 99 5609 75 04, binder

M16 IP67 Male angled connector, Contacts: 4, 6.0-8.0 mm, shieldable, solder, IP67, UL.

Technical specifications
Version angle plug
Additional parts equipped
Shell Material CuZn
Cable diameter 6 to 8 mm
Contact connection solder connection
contact surface silver-plated
Cable cross-section 0.75 mm²
Assembly cable assembly
Orientation angled
Pin number 4 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
