99 5613 750 05 | binder
Angle plug, 5 pole, crimp connection, screw locking, angled, 99 5613 750 05
Unit Price (€ / pc.)
16.8266 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
16.83 € *
Price list
Quantity
Price per unit*
1 pcs.
16.8266 €
10 pcs.
15.6485 €
50 pcs.
14.5537 €
100 pcs.
13.5303 €
*incl. VAT plus shipping costs
**Subject to prior sale

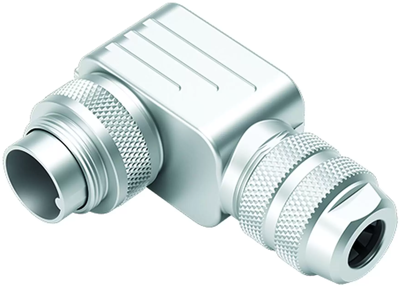

Male angled connector, 99 5613 750 05, binder

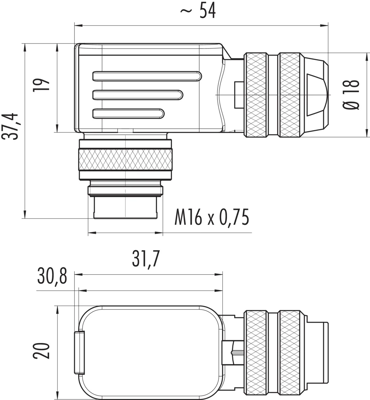

M16 IP67 Male angled connector, Contacts: 5, 6.0-8.0 mm, shieldable, crimping, IP67, UL.
Technical specifications
| Version | angle plug | |
| Additional parts | unequipped | |
| Shell Material | CuZn | |
| Cable diameter | 6 to 8 mm | |
| Contact connection | crimp connection | |
| contact surface | silver-plated | |
| Cable cross-section | 0.14-1.0 mm² | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Pin number | 5 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
