99 5621 09 06 | binder

Plug, 6 pole, solder connection, screw locking, straight, 99 5621 09 06

Order No.: 70P0222
EAN: 4099891694760
MPN:
99 5621 09 06
Series: 423
binder
99 5621 09 06 binder Other Circular Connectors Image 1
99 5621 09 06 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
22.3244 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
22.32 € *
Price list
Quantity
Price per unit*
1 pcs.
22.3244 €
10 pcs.
20.9797 €
50 pcs.
19.7183 €
100 pcs.
18.5402 €
*incl. VAT plus shipping costs
**Subject to prior sale

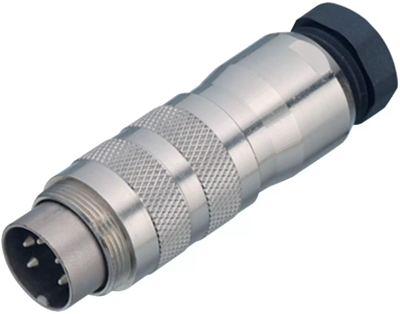

Male cable connector, 99 5621 09 06, binder

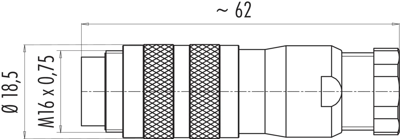

M16 IP67 Male cable connector, Contacts: 6 DIN, 6.0-8.0 mm, shieldable, solder, IP67, UL.

Technical specifications
Version plug
Additional parts equipped
Shell Material CuZn
Cable diameter 6 to 8 mm
Contact connection solder connection
contact surface gold-plated
Cable cross-section 0.75 mm²
Assembly cable assembly
Orientation straight
Pin number 6 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
