99 5625 09 07 | binder

Plug, 7 pole, solder connection, screw locking, straight, 99 5625 09 07

Order No.: 70P0228
EAN: 4099891694821
MPN:
99 5625 09 07
Series: 423
binder

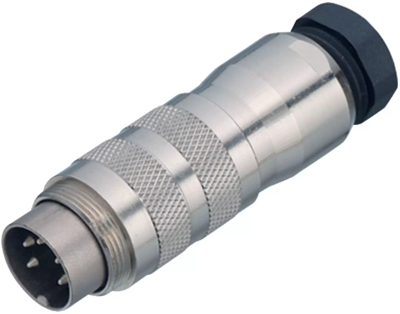

99 5625 09 07 binder Other Circular Connectors Image 1

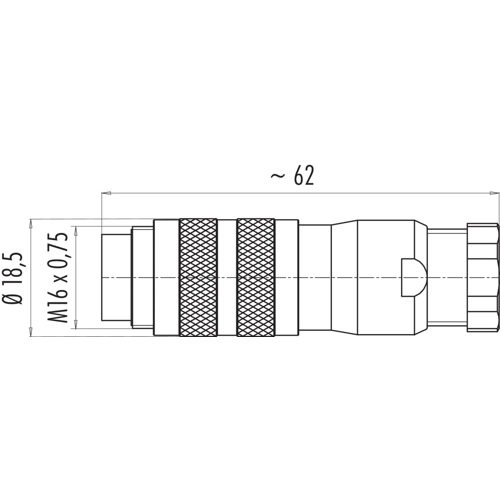

99 5625 09 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
23.7405 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
23.74 € *
Price list
Quantity
Price per unit*
1 pcs.
23.7405 €
10 pcs.
22.3244 €
50 pcs.
20.9678 €
100 pcs.
19.7064 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male cable connector, 99 5625 09 07, binder

M16 IP67 Male cable connector, Contacts: 7, 6.0-8.0 mm, shieldable, solder, IP67, UL.

Technical specifications
Version plug
Additional parts equipped
Shell Material CuZn
Cable diameter 6 to 8 mm
Contact connection solder connection
contact surface gold-plated
Cable cross-section 0.75 mm²
Assembly cable assembly
Orientation straight
Pin number 7 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
