99 5625 75 07 | binder

Angle plug, 7 pole, solder connection, screw locking, angled, 99 5625 75 07

Order No.: 66P4563
EAN: 4099889701982
MPN:
99 5625 75 07
Series: 423
binder

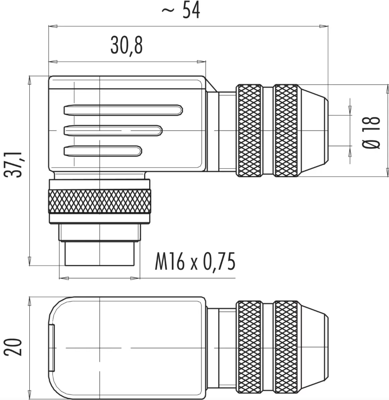

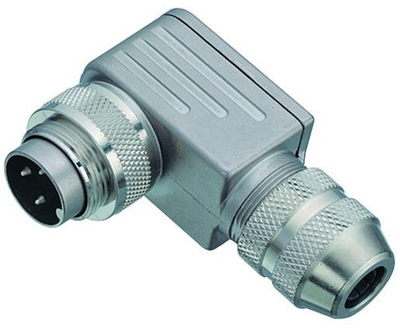

99 5625 75 07 binder Other Circular Connectors Image 1
99 5625 75 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
17.7667 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
17.77 € *
Price list
Quantity
Price per unit*
1 pcs.
17.7667 €
10 pcs.
16.5172 €
50 pcs.
15.3629 €
100 pcs.
14.2919 €
*incl. VAT plus shipping costs
**Subject to prior sale

Miniature connector, 99-5625-75-07, BINDER

M16 IP67 Male angled connector, Contacts: 7, 6.0-8.0 mm, shieldable, solder, IP67, UL.

Features

  • Contact material: CuZn
  • Degree of protection: IP67
  • Pollution degree: 1
  • Overvoltage category: I
Technical specifications
Version angle plug
Additional parts equipped
Shell Material brass
Cable diameter 6 to 8 mm
Contact connection solder connection
contact surface silver-plated
Cable cross-section 0.75 mm²
Assembly cable assembly
Orientation angled
Pin number 7 pole
Type of locking screw locking
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
