99 5651 75 14 | binder

Angle plug, 14 pole, solder connection, screw locking, angled, 99 5651 75 14

Order No.: 66P4578
EAN: 4099889701999
MPN:
99 5651 75 14
Series: 423

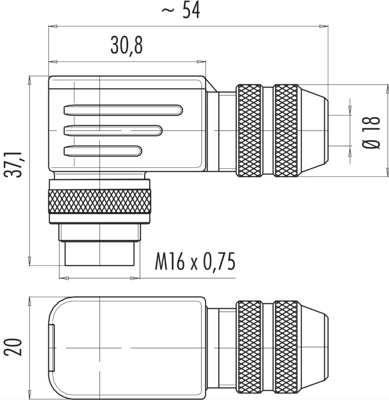

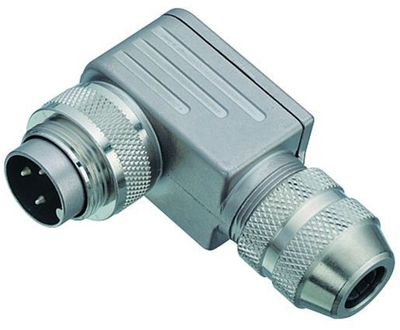

99 5651 75 14 binder Other Circular Connectors Image 1
99 5651 75 14 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
23.1098 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
23.11 € *
Price list
Quantity
Price per unit*
1 pcs.
23.1098 €
10 pcs.
21.7294 €
50 pcs.
20.4204 €
100 pcs.
19.1947 €
*incl. VAT plus shipping costs
**Subject to prior sale

Miniature connector, 99-5651-75-14, BINDER

M16 IP67 Male angled connector, Contacts: 14, 6.0-8.0 mm, shieldable, solder, IP67, UL.

Features

  • Contact material: CuZn
  • Degree of protection: IP67
  • Pollution degree: 1
  • Overvoltage category: I
Technical specifications
Version Winkelstecker
Cable cross-section 0,25 mm²
Pin number 14-polig
Orientation abgewinkelt
Contact connection Lötanschluss
Type of locking Schraubverriegelung
Cable diameter 6 bis 8 mm
Assembly Kabelmontage
Additional parts bestückt
contact surface vergoldet
Shell Material Messing
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
