99 5681 75 07 | binder

Angle plug, 7 pole, solder connection, screw locking, angled, 99 5681 75 07

Order No.: 70P0237
EAN: 4099891694913
MPN:
99 5681 75 07
Series: 423
99 5681 75 07 binder Other Circular Connectors Image 1
99 5681 75 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
19.0638 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
19.06 € *
Price list
Quantity
Price per unit*
1 pcs.
19.0638 €
10 pcs.
17.9214 €
50 pcs.
16.8385 €
100 pcs.
15.8270 €
*incl. VAT plus shipping costs
**Subject to prior sale

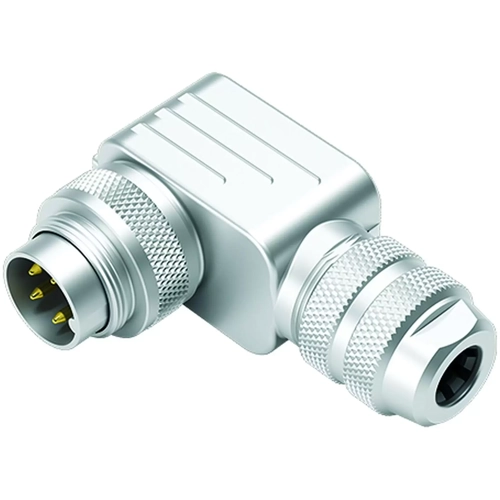

Male angled connector, 99 5681 75 07, binder

M16 IP67 Male angled connector, Contacts: 7 DIN, 6.0-8.0 mm, shieldable, solder, IP67, UL.

Technical specifications
Version Winkelstecker
Cable cross-section 0,75 mm²
Pin number 7-polig
Orientation abgewinkelt
Contact connection Lötanschluss
Type of locking Schraubverriegelung
Cable diameter 6 bis 8 mm
Assembly Kabelmontage
Additional parts bestückt
contact surface versilbert
Shell Material CuZn
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
