99 5813 15 05 | binder
Plug, 5 pole, solder connection, screw locking, straight, 99 5813 15 05
Unit Price (€ / pc.)
18.7901 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
18.79 € *
Price list
Quantity
Price per unit*
1 pcs.
18.7901 €
10 pcs.
17.6596 €
50 pcs.
16.6005 €
100 pcs.
15.6009 €
*incl. VAT plus shipping costs
**Subject to prior sale

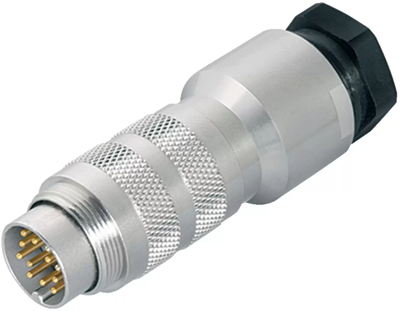

Male cable connector, 99 5813 15 05, binder
M16 IP67 Male cable connector, Contacts: 5, 8.0-10.0 mm, shieldable, solder, IP67, UL.

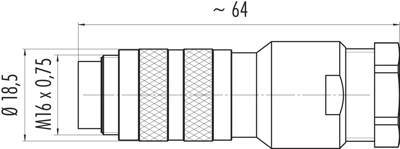

Technical specifications
| Version | plug | |
| Additional parts | equipped | |
| Shell Material | CuZn | |
| Cable diameter | 8 to 10 mm | |
| Contact connection | solder connection | |
| contact surface | silver-plated | |
| Cable cross-section | 0.75 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 5 pole | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
