99 6489 100 05 | binder
Plug, 4 pole + PE, crimp connection, bayonet locking, straight, 99 6489 100 05
Unit Price (€ / pc.)
22.1816 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
22.18 € *
Price list
Quantity
Price per unit*
1 pcs.
22.1816 €
10 pcs.
20.8607 €
50 pcs.
19.6112 €
100 pcs.
18.4331 €
*incl. VAT plus shipping costs
**Subject to prior sale

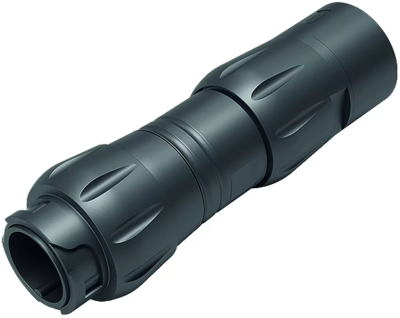

Male cable connector, 99 6489 100 05, binder
Bayonet HEC Male cable connector, Contacts: 4+PE, 7.0-17.0 mm, unshielded, crimping, IP68/IP69K, UL, VDE.
Technical specifications
| Version | plug | |
| Additional parts | unequipped | |
| Shell Material | PA | |
| Cable diameter | 7 to 17 mm | |
| Contact connection | crimp connection | |
| Cable cross-section | 2.5-6.0 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 4 pole + PE | |
| Type of locking | bayonet locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
