99 9105 70 03 | binder

Plug, 3 pole, solder connection, snap lock, straight, 99 9105 70 03

Order No.: 70P1268
EAN: 4099891701307
MPN:
99 9105 70 03
Series: 720
binder

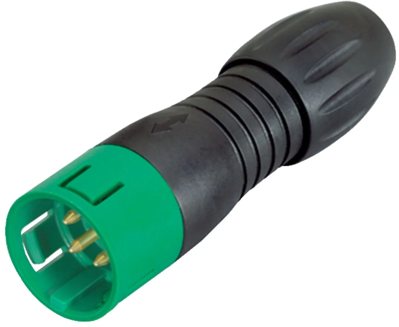

99 9105 70 03 binder Other Circular Connectors Image 1
99 9105 70 03 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.4732 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
7.47 € *
Price list
Quantity
Price per unit*
1 pcs.
7.4732 €
10 pcs.
6.7354 €
50 pcs.
5.9262 €
100 pcs.
5.3193 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male cable connector, 99 9105 70 03, binder

Snap-In IP67 Male cable connector, Contacts: 3, 4.0-6.0 mm, unshielded, solder, IP67, VDE.

Technical specifications
Version plug
Additional parts equipped
Shell Material PA
Cable diameter 4 to 6 mm
Contact connection solder connection
contact surface gold-plated
Cable cross-section 0.75 mm²
Assembly cable assembly
Orientation straight
Pin number 3 pole
Type of locking snap lock
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
