99 9106 450 03 | binder
Jack, 3 pole, solder connection, snap lock, straight, 99 9106 450 03
Unit Price (€ / pc.)
9.4010 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.40 € *
Price list
Quantity
Price per unit*
1 pcs.
9.4010 €
10 pcs.
8.4609 €
50 pcs.
7.7707 €
100 pcs.
6.8544 €
*incl. VAT plus shipping costs
**Subject to prior sale

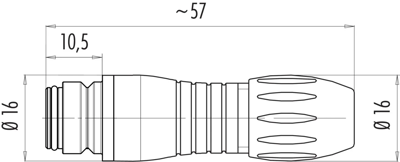

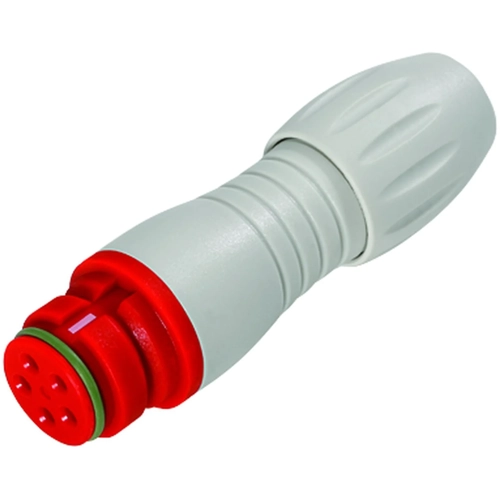

Female cable connector, 99 9106 450 03, binder
Snap-In IP67 (miniature) Female cable connector, Contacts: 3, 4.0-6.0 mm, unshielded, solder, IP67.
Technical specifications
| Version | Kupplung | |
| Cable cross-section | 0,75 mm² | |
| Pin number | 3-polig | |
| Orientation | gerade | |
| Contact connection | Lötanschluss | |
| Type of locking | Schnappverriegelung | |
| Cable diameter | 4 bis 6 mm | |
| Assembly | Kabelmontage | |
| Additional parts | bestückt | |
| contact surface | vergoldet | |
| Shell Material | PA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
