99 9106 70 03 | binder
Jack, 3 pole, solder connection, snap lock, straight, 99 9106 70 03
Unit Price (€ / pc.)
9.0202 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.02 € *
Price list
Quantity
Price per unit*
1 pcs.
9.0202 €
10 pcs.
8.1158 €
50 pcs.
7.4613 €
100 pcs.
6.5569 €
*incl. VAT plus shipping costs
**Subject to prior sale

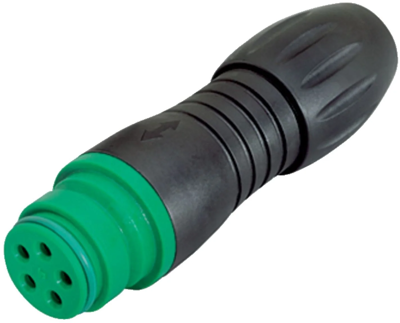

Female cable connector, 99 9106 70 03, binder
Snap-In IP67 Female cable connector, Contacts: 3, 4.0-6.0 mm, unshielded, solder, IP67, VDE.
Technical specifications
| Version | jack | |
| Additional parts | equipped | |
| Shell Material | PA | |
| Cable diameter | 4 to 6 mm | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Cable cross-section | 0.75 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 3 pole | |
| Type of locking | snap lock |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
