99 9114 03 05 | binder

Jack, 5 pole, solder connection, snap lock, straight, 99 9114 03 05

Order No.: 70P1296
EAN: 4099891701543
MPN:
99 9114 03 05
Series: 720
binder

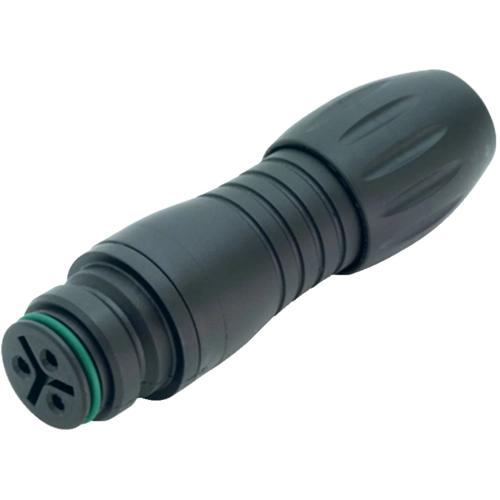

99 9114 03 05 binder Other Circular Connectors Image 1
99 9114 03 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.3768 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
10.38 € *
Price list
Quantity
Price per unit*
1 pcs.
10.3768 €
10 pcs.
9.6509 €
50 pcs.
8.9726 €
100 pcs.
8.0801 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female cable connector, 99 9114 03 05, binder

Snap-In IP67 Female cable connector, Contacts: 5, 2.5-4.0 mm, unshielded, solder, IP67, VDE.

Technical specifications
Version jack
Additional parts equipped
Shell Material PA
Cable diameter 2.5 to 4 mm
Contact connection solder connection
contact surface gold-plated
Cable cross-section 0.75 mm²
Assembly cable assembly
Orientation straight
Pin number 5 pole
Type of locking snap lock
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
