99 9125 403 08 | binder
Plug, 8 pole, solder connection, snap lock, straight, 99 9125 403 08
Unit Price (€ / pc.)
11.5192 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
11.52 € *
Price list
Quantity
Price per unit*
1 pcs.
11.5192 €
10 pcs.
10.7100 €
50 pcs.
9.9484 €
100 pcs.
8.9488 €
*incl. VAT plus shipping costs
**Subject to prior sale

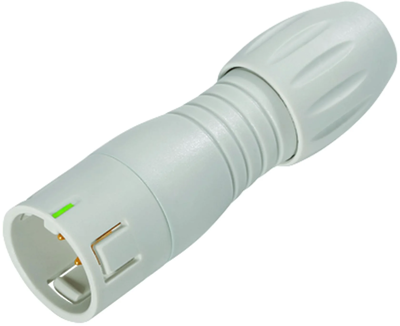

Male cable connector, 99 9125 403 08, binder
Snap-In IP67 (miniature) Male cable connector, Contacts: 8, 2.5-4.0 mm, unshielded, solder, IP67.

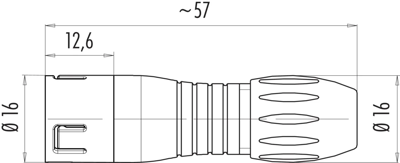

Technical specifications
| Version | Stecker | |
| Cable cross-section | 0,25 mm² | |
| Pin number | 8-polig | |
| Orientation | gerade | |
| Contact connection | Lötanschluss | |
| Type of locking | Schnappverriegelung | |
| Cable diameter | 2,5 bis 4 mm | |
| Assembly | Kabelmontage | |
| Additional parts | bestückt | |
| contact surface | vergoldet | |
| Shell Material | PA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
