99 9126 50 08 | binder
Jack, 8 pole, solder connection, snap lock, straight, 99 9126 50 08
Unit Price (€ / pc.)
13.0186 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
13.02 € *
Price list
Quantity
Price per unit*
1 pcs.
13.0186 €
10 pcs.
12.1023 €
50 pcs.
11.2455 €
100 pcs.
10.1269 €
*incl. VAT plus shipping costs
**Subject to prior sale

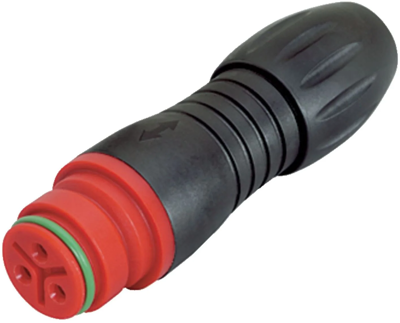

Female cable connector, 99 9126 50 08, binder
Snap-In IP67 Female cable connector, Contacts: 8, 4.0-6.0 mm, unshielded, solder, IP67, VDE.
Technical specifications
| Version | jack | |
| Additional parts | equipped | |
| Shell Material | PA | |
| Cable diameter | 4 to 6 mm | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Cable cross-section | 0.25 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 8 pole | |
| Type of locking | snap lock |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
