99 9133 00 12 | binder

Plug, 12 pole, solder cup, snap lock, straight, 99 9133 00 12

Order No.: 67F8022
EAN: 4099889732801
MPN:
99 9133 00 12
Series: 720
binder

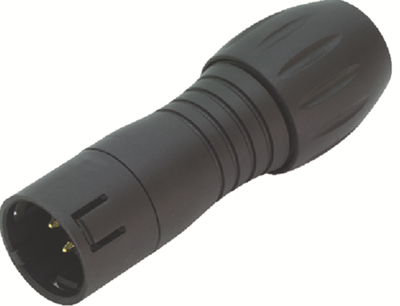

99 9133 00 12 binder Other Circular Connectors Image 1
99 9133 00 12 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
20.5037 € *
Available: 75 pcs.
Leadtime: On Request **
Total Price:
20.50 € *
Price list
Quantity
Price per unit*
1 pcs.
20.5037 €
10 pcs.
18.0404 €
50 pcs.
16.8147 €
150 pcs.
16.0650 €
500 pcs.
15.2677 €
*incl. VAT plus shipping costs
**Subject to prior sale

Circular connector, type Binder 720.

With snap lock; Male contact: copper zinc. Female contact: copper tin. Contact finish: gold-plated. Solder connections: 3- to 5-pole max. 0.75 mm², 8- and 12-pole max. 0.25 mm². Contact block and housing: PA 66 to UL 94 V-0. Test surge voltage: 3-pole 2950 V, 5- and 8-pole 1750 V, 12-pole 910 V. Contact resistance: 3.0 mohm. Insulation resistance: 10 Gohm. Degree of protection: IP 67. Operating temperatures: –40 to +80 °C. Insertion/removal cycles: min. 500.

Cable plug connectors, type 720.

Technical attributes (type, number of poles, rated voltage/rated current (40 °C), cable outlet): 99-9133-00-12, 12p, 60 V, 2.0 A, 4.0 to 6.0 mm

Technical specifications
Version plug
Additional parts equipped
Shell Material PA
Cable diameter 4 to 6 mm
Contact connection solder cup
contact surface gold-plated
Cable cross-section 0.25 mm²
Assembly cable assembly
Orientation straight
Pin number 12 pole
Type of locking snap lock
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
