99 9155 03 03 | binder

Miniature connector, Snap In, unshielded, 0,25 mm², AWG 18, male angled, 3 pole

Order No.: 67F9969
MPN:
99 9155 03 03
99 9155 03 03
Series: 720
binder

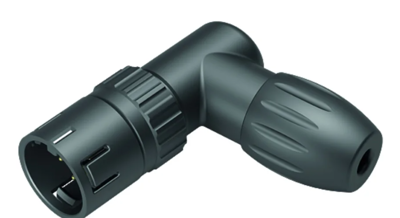

99 9155 03 03 binder Other Circular Connectors Image 1

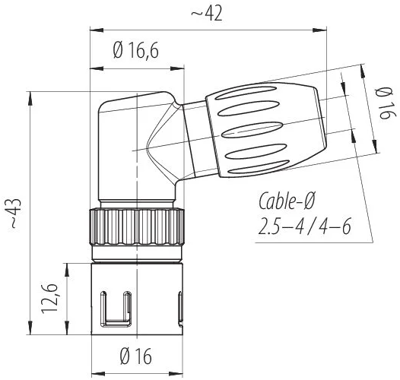

99 9155 03 03 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
9.5914 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.59 € *
Price list
Quantity
Price per unit*
1 pcs.
9.5914 €
10 pcs.
8.7227 €
50 pcs.
7.6755 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male angled connector, 99 9155 03 03, binder

Snap-In Male angled connector, Contacts: 3, 2.5 - 4.0 mm, unshielded, solder, IP67.

Technical specifications
Version angle plug
Shell Material PA
Cable diameter 2.5 to 4 mm
Contact connection solder connection
contact surface gold-plated
Cable cross-section 0.75 mm²
Assembly cable assembly
Orientation angled
Pin number 3 pole
Type of locking snap-in
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
