99 9163 02 05 | binder
Miniature connector, Snap In, unshielded, 0,75 mm², AWG 18, male angled, 5 pole
Unit Price (€ / pc.)
11.7810 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
11.78 € *
Price list
Quantity
Price per unit*
1 pcs.
11.7810 €
10 pcs.
10.7219 €
50 pcs.
9.4367 €
*incl. VAT plus shipping costs
**Subject to prior sale

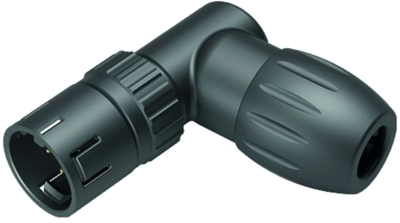

Male angled connector, 99 9163 02 05, binder
Snap-In Male angled connector, Contacts: 5, 6.0 - 8.0 mm, unshielded, solder, IP67.

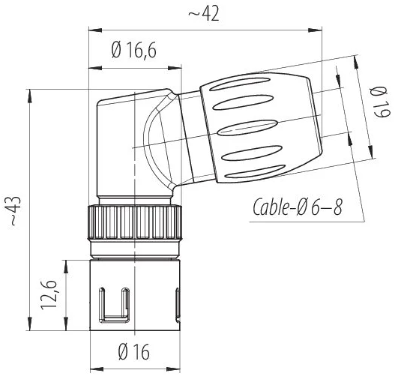

Technical specifications
| Version | angle plug | |
| Shell Material | PA | |
| Cable diameter | 6 to 8 mm | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Cable cross-section | 0.75 mm² | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Pin number | 5 pole | |
| Type of locking | snap-in |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
