99 9175 03 08 | binder

Miniature connector, Snap In, unshielded, 0,25 mm², AWG 24, male angled, 8 pole

Order No.: 67F9970
MPN:
99 9175 03 08
99 9175 03 08
Series: 720
binder

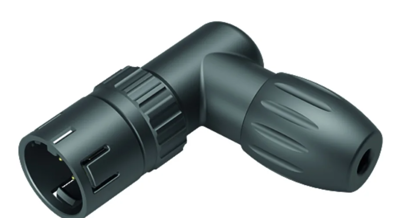

99 9175 03 08 binder Other Circular Connectors Image 1

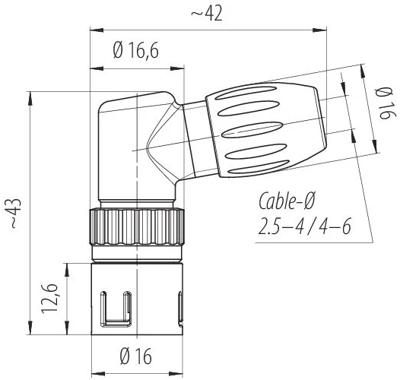

99 9175 03 08 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
13.8992 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
13.90 € *
Price list
Quantity
Price per unit*
1 pcs.
13.8992 €
10 pcs.
12.6497 €
50 pcs.
11.1265 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male angled connector, 99 9175 03 08, binder

Snap-In Male angled connector, Contacts: 8, 2.5 - 4.0 mm, unshielded, solder, IP67.

Technical specifications
Version angle plug
Shell Material PA
Cable diameter 2.5 to 4 mm
Contact connection solder connection
contact surface gold-plated
Cable cross-section 0.25 mm²
Assembly cable assembly
Orientation angled
Pin number 8 pole
Type of locking snap-in
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
