99 9208 00 03 | binder

Panel socket, 3 pole, solder cup, snap lock, straight, 99 9208 00 03

Order No.: 67F8130
EAN: 4099889733136
MPN:
99 9208 00 03
Series: 620
binder

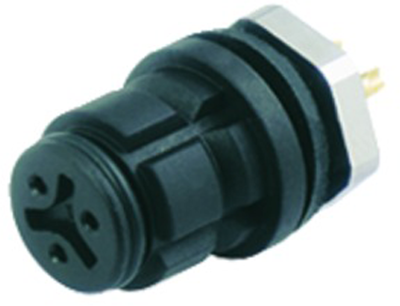

99 9208 00 03 binder Other Circular Connectors Image 1

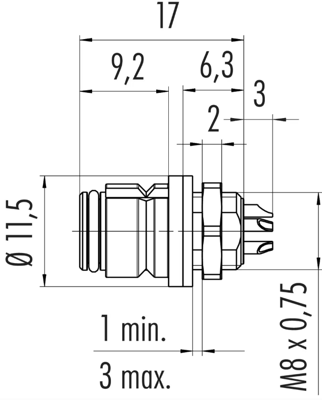

99 9208 00 03 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
5.9143 € *
Available: 179 pcs.
Leadtime: On Request **
Total Price:
5.91 € *
Price list
Quantity
Price per unit*
1 pcs.
5.9143 €
10 pcs.
5.2003 €
100 pcs.
4.5696 €
250 pcs.
4.3911 €
1000 pcs.
4.0936 €
*incl. VAT plus shipping costs
**Subject to prior sale

SubMiniature circular connector, type Binder 620.

With snap lock; Male contact: CuZn. Female contact: CuSn. Contact finish: gold-plated. Connection: soldering, max. 0.25 mm². Cable outlet: 3.0 to 5.0 mm. Contact carrier and housing: PA 66 to UL 94 V-0. Rated voltage: 125 V. Rated current: 3.0 A. Test surge voltage: 1750 V. Insulation resistance: 10 Gohm. Degree of protection: IP 67. Operating temperatures: - 40 to +85 °C. Insertion/removal cycles: min. 500.

Female panel mount connector, type 620.

For panel thickness from 1.0 to 3.0 mm. the adapters for front-panel mounting are described below and are available on separate order.

Technical attributes (type, number of poles): 99-9208-00-03, 3-pole

Technical specifications
Version panel socket
Additional parts equipped
Shell Material PA
Cable diameter 3 to 5 mm
Contact connection solder cup
contact surface gold-plated
Cable cross-section 0.25 mm²
Assembly PCB mounting
Orientation straight
Pin number 3 pole
Type of locking snap lock
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
