99 9210 00 04 | binder

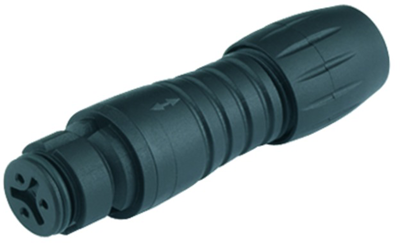

Jack, 4 pole, solder cup, snap lock, straight, 99 9210 00 04
Unit Price (€ / pc.)
9.9008 € *
Available: 90 pcs.
Leadtime: On Request **
Total Price:
9.90 € *
Price list
Quantity
Price per unit*
1 pcs.
9.9008 €
10 pcs.
8.7108 €
100 pcs.
7.6398 €
250 pcs.
7.3423 €
1000 pcs.
6.8782 €
*incl. VAT plus shipping costs
**Subject to prior sale

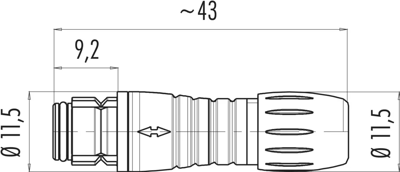

SubMiniature circular connector, type Binder 620.
With snap lock; Male contact: CuZn. Female contact: CuSn. Contact finish: gold-plated. Connection: soldering, max. 0.25 mm². Cable outlet: 3.0 to 5.0 mm. Contact carrier and housing: PA 66 to UL 94 V-0. Rated voltage: 125 V. Rated current: 2.5. Test surge voltage: 1750 V. Insulation resistance: 10 Gohm. Degree of protection: IP 67. Operating temperatures: - 40 to +85 °C. Insertion/removal cycles: min. 500.
Female cable connectors, type 620.
Technical attributes (type, number of poles): 99-9210-00-04, 4-pole
Technical specifications
| Version | jack | |
| Additional parts | equipped | |
| Shell Material | PA | |
| Cable diameter | 3 to 5 mm | |
| Contact connection | solder cup | |
| contact surface | gold-plated | |
| Cable cross-section | 0.25 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Type of locking | snap lock |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
