99 9226 00 08 | binder

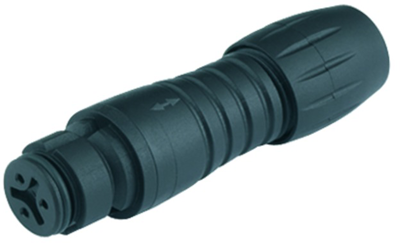

Jack, 8 pole, solder cup, snap lock, straight, 99 9226 00 08
Unit Price (€ / pc.)
9.7342 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.73 € *
Price list
Quantity
Price per unit*
1 pcs.
9.7342 €
10 pcs.
9.0559 €
50 pcs.
8.4133 €
100 pcs.
7.5684 €
*incl. VAT plus shipping costs
**Subject to prior sale

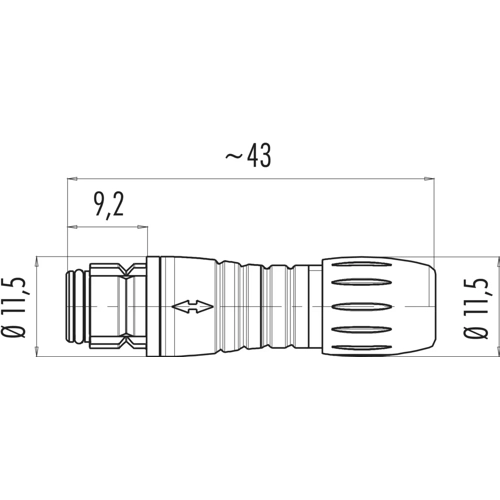

SubMiniature circular connector, type Binder 620.
With snap lock; Male contact: CuZn. Female contact: CuSn. Contact finish: gold-plated. Connection: soldering, max. 0.25 mm². Cable outlet: 3.0 to 5.0 mm. Contact carrier and housing: PA 66 to UL 94 V-0. Rated voltage: 60 V. Rated current: 1.0 A. Test surge voltage: 910 V. Insulation resistance: 10 Gohm. Degree of protection: IP 67. Operating temperatures: - 40 to +85 °C. Insertion/removal cycles: min. 500.
Female cable connectors, type 620.
Technical attributes (type, number of poles): 99-9226-00-08, 8-pole
Technical specifications
| Version | Kupplung | |
| Cable cross-section | 0,25 mm² | |
| Pin number | 8-polig | |
| Orientation | gerade | |
| Contact connection | Lötkelch | |
| Type of locking | Schnappverriegelung | |
| Cable diameter | 3 bis 5 mm | |
| Assembly | Kabelmontage | |
| Additional parts | bestückt | |
| contact surface | vergoldet | |
| Shell Material | PA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
