09 0692 070 04 | binder

Name: Sensor actuator cable, M12-flange socket, straight to open end, 3 pole + PE, 0.2 m, 12 A, 09 0692 070 04
Brand: binder
SKU: 70P1994
Price: 22.81 EUR
Availability: OutOfStock

Sensor actuator cable, M12-flange socket, straight to open end, 3 pole + PE, 0.2 m, 12 A, 09 0692 070 04

Order No.: 70P1994

EAN: 4099891663445

MPN:

09 0692 070 04

Series: 814

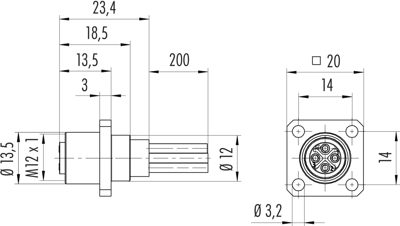

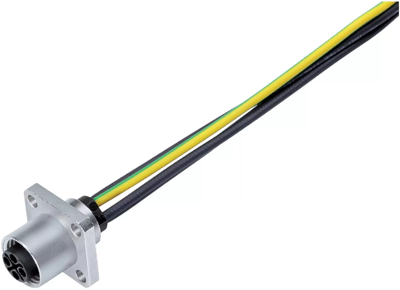

09 0692 070 04 binder Sensor-Actuator Cables Image 2

Image may differ

Key Specification:

Anschluss (1) M12-Flanschbuchse, gerade

Anschluss (2) offenes Ende

Polzahl 3-polig + PE

Kabellänge 0.2 m

Download Datasheet Technical specifications

Unit Price (€ / pc.)

22.8123 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

22.81 € *

Price list

Quantity

Price per unit*

1 pcs.

22.8123 €

10 pcs.

21.4438 €

50 pcs.

20.1586 €

100 pcs.

18.9567 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Sensor actuator cable, 09 0692 070 04, binder

M12-S Square female panel mount connector, Contacts: 3+PE, unshielded, single wires, IP40, UL.

Technical specifications

	Anschluss (1)	M12-Flanschbuchse, gerade
	Anschluss (2)	offenes Ende
	Kabellänge	0.2 m
	LED-Anzeige	No
	max. Spannung	630 V
	Nennstrom	12 A
	Polzahl	3-polig + PE
	Schutzart (IP)	IP40/IP67
