09 0701 300 05 | binder

Name: Sensor actuator cable, M12-flange plug, straight to open end, 4 pole + PE, 0.2 m, 12 A, 09 0701 300 05
Brand: binder
SKU: 70P3131
Price: 26.12 EUR
Availability: OutOfStock

Sensor actuator cable, M12-flange plug, straight to open end, 4 pole + PE, 0.2 m, 12 A, 09 0701 300 05

Order No.: 70P3131

EAN: 4099891670757

MPN:

09 0701 300 05

Series: 824

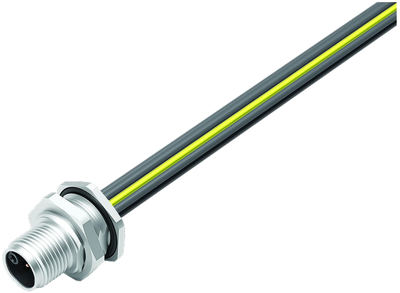

09 0701 300 05 binder Sensor-Actuator Cables Image 2

Image may differ

Key Specification:

Connection (1) M12-flange plug, straight

Connection (2) open end

Pin number 4 pole + PE

Cable length 0.2 m

Download Datasheet Technical specifications

Unit Price (€ / pc.)

26.1205 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

26.12 € *

Price list

Quantity

Price per unit*

1 pcs.

26.1205 €

10 pcs.

24.5497 €

25 pcs.

23.0741 €

50 pcs.

21.6937 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Sensor actuator cable, 09 0701 300 05, binder

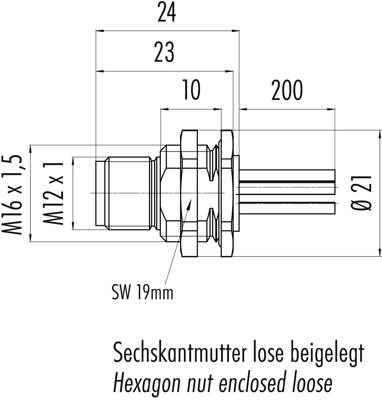

M12-K Male panel mount connector, Contacts: 4+PE, unshielded, single wires, IP68, M16x1.5, screwable from the front.

Technical specifications

	Connection (1)	M12-flange plug, straight
	Connection (2)	open end
	Cable length	0.2 m
	LED display	No
	max. Voltage	630 V
	Rated current	12 A
	Pin number	4 pole + PE
	Degree of protection (IP)	IP68
