09 3441 00 05 | binder

Sensor actuator cable, M12-flange plug, straight to open end, 5 pole, 0.2 m, 4 A, 09 3441 00 05

Order No.: 66P1229
EAN: 4099889699609
MPN:
09 3441 00 05
Series: 763
binder

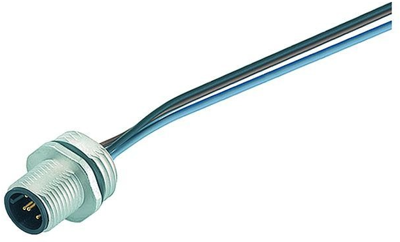

09 3441 00 05 binder Sensor-Actuator Cables Image 1
09 3441 00 05 binder Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
11.3288 € *
Available: 0 pcs.
Available in 5 Days: 100 pcs.
Leadtime: On Request **
Total Price:
11.33 € *
Price list
Quantity
Price per unit*
1 pcs.
11.3288 €
10 pcs.
10.4244 €
50 pcs.
9.4724 €
100 pcs.
8.3419 €
*incl. VAT plus shipping costs
**Subject to prior sale

Sensor-actuator connector, 09-3441-00-05, BINDER

M12-A Male panel mount connector, Contacts: 5, unshielded, single wires, IP68, PG 9.

Features

  • Contact material: CuZn
  • Pollution degree: 3
  • Overvoltage category: I
Technical specifications
Connection (1) M12-flange plug, straight
Connection (2) open end
Cable length 0.2 m
LED display No
max. Voltage 60 V
Rated current 4 A
Pin number 5 pole
Degree of protection (IP) IP68
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
