09 3441 700 05 | binder

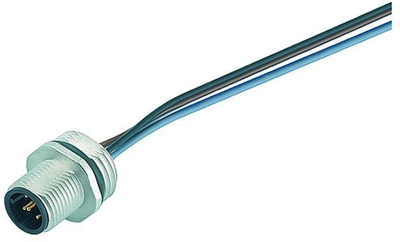

Sensor actuator cable, M12-flange plug, straight to open end, 5 pole, 0.2 m, 4 A, 09 3441 700 05
Unit Price (€ / pc.)
15.4105 € *
Available: 0 pcs.
Available in 5 Days: 100 pcs.
Leadtime: On Request **
Total Price:
15.41 € *
Price list
Quantity
Price per unit*
1 pcs.
15.4105 €
10 pcs.
13.5541 €
50 pcs.
12.6378 €
150 pcs.
12.0785 €
500 pcs.
11.4716 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor-actuator connector, 09-3441-700-05, BINDER

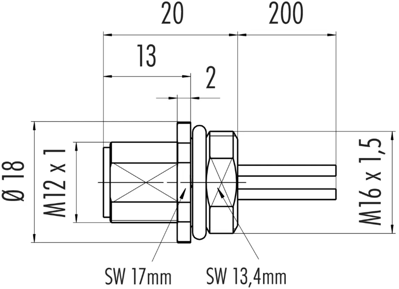

M12-A Male panel mount connector, Contacts: 5, unshielded, single wires, IP68, M16x1.5.
Features
- Contact material: CuZn
- Pollution degree: 3
- Overvoltage category: I
Technical specifications
| Connection (1) | M12-flange plug, straight | |
| Connection (2) | open end | |
| Cable length | 0.2 m | |
| LED display | No | |
| max. Voltage | 60 V | |
| Rated current | 4 A | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
