09 3491 116 12 | binder

Sensor actuator cable, M12-flange plug, straight to open end, 12 pole, 0.2 m, 1.5 A, 09 3491 116 12

Order No.: 66P1355
EAN: 4099889699708
MPN:
09 3491 116 12
Series: 763
binder

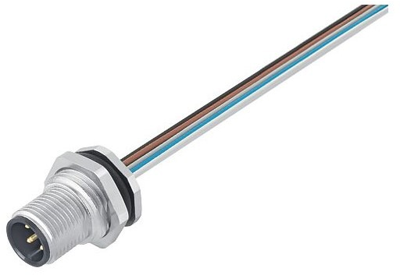

09 3491 116 12 binder Sensor-Actuator Cables Image 1
09 3491 116 12 binder Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
24.8948 € *
Available: 15 pcs.
Next delivery: 40 pcs. on 2025-01-14
Leadtime: On Request **
Total Price:
24.89 € *
Price list
Quantity
Price per unit*
1 pcs.
24.8948 €
10 pcs.
23.3954 €
25 pcs.
21.9912 €
50 pcs.
20.6703 €
*incl. VAT plus shipping costs
**Subject to prior sale

Sensor-actuator connector, 09-3491-116-12, BINDER

M12-A Male panel mount connector, Contacts: 12, unshielded, single wires, IP68, UL, PG 9, front mounting.

Features

  • Contact material: CuZn
  • Pollution degree: 3
  • Overvoltage category: I
Technical specifications
Connection (1) M12-flange plug, straight
Connection (2) open end
Cable length 0.2 m
LED display No
max. Voltage 30 V
Rated current 1.5 A
Pin number 12 pole
Degree of protection (IP) IP68
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
