09 3732 700 04 | binder

Name: Sensor actuator cable, M12-flange socket, straight to open end, 4 pole, 0.2 m, 4 A, 09 3732 700 04
Brand: binder
SKU: 66P1382
Price: 15.30 EUR
Availability: InStock

Sensor actuator cable, M12-flange socket, straight to open end, 4 pole, 0.2 m, 4 A, 09 3732 700 04

Order No.: 66P1382

EAN: 4099879088772

MPN:

09 3732 700 04

Series: 876

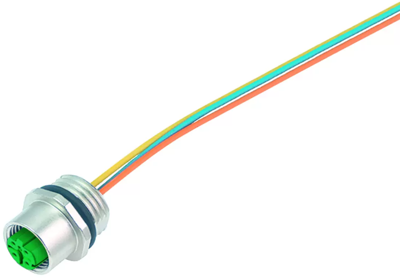

09 3732 700 04 binder Sensor-Actuator Cables Image 2

Image may differ

Key Specification:

Connection (1) M12-flange socket, straight

Connection (2) open end

Pin number 4 pole

Cable length 0.2 m

Download Datasheet Technical specifications

Unit Price (€ / pc.)

15.3034 € *

Available: 10 pcs.

Available in 5 Days: 100 pcs.

Leadtime: On Request **

Total Price:

15.30 € *

Price list

Quantity

Price per unit*

1 pcs.

15.3034 €

10 pcs.

13.4589 €

50 pcs.

12.5426 €

150 pcs.

11.9952 €

500 pcs.

11.3764 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Female connector, 09-3732-700-04, Franz Binder

M12-D Female connector, poles 4, unshielded, single wires, IP67, UL, M16x1.5

Technical specifications

	Connection (1)	M12-flange socket, straight
	Connection (2)	open end
	Cable length	0.2 m
	LED display	No
	max. Voltage	250 V
	Rated current	4 A
	Pin number	4 pole
	Degree of protection (IP)	IP67
