31 5236 300 510 | binder

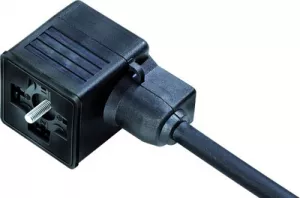

Sensor actuator cable, valve connector DIN shape A to open end, 2 pole + PE, 3 m, PUR, black, 10 A, 31 5236 300 510
Unit Price (€ / pc.)
23.2645 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
23.26 € *
Price list
Quantity
Price per unit*
1 pcs.
23.2645 €
10 pcs.
20.4799 €
50 pcs.
19.0876 €
150 pcs.
18.2427 €
500 pcs.
17.3026 €
*incl. VAT plus shipping costs
**Subject to prior sale
Female solenoid valve connector, 31-5236-300-510, Franz Binder
Size A Female solenoid valve connector, poles 2+2PE, unshielded, cable moulded, PUR, Circuit Z10, 3m

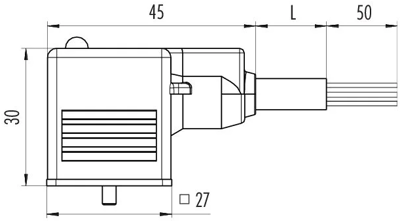

Technical specifications
| Connection (1) | valve connector DIN shape A | |
| Connection (2) | open end | |
| Colour | black | |
| Cable length | 3 m | |
| LED display | Yes | |
| Material | PUR | |
| max. Voltage | 24 V | |
| Rated current | 10 A | |
| Pin number | 2 pole + PE | |
| Degree of protection (IP) | IP67 |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
