70 3420 005 04 | binder
Sensor actuator cable, M8-flange socket, straight to open end, 4 pole, 0.5 m, PUR, green, 4 A, 70 3420 005 04
Unit Price (€ / pc.)
25.4303 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
25.43 € *
Price list
Quantity
Price per unit*
1 pcs.
25.4303 €
10 pcs.
23.9071 €
25 pcs.
22.4791 €
50 pcs.
21.1344 €
*incl. VAT plus shipping costs
**Subject to prior sale

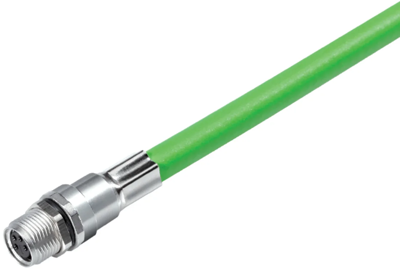

Sensor actuator cable, 70 3420 005 04, binder
M8 Female panel mount connector, Contacts: 4, shielded, with cable assembled, IP67, Ethernet, PUR, green, 4 x AWG 22, 0.5 m.
Technical specifications
| Connection (1) | M8-Flanschbuchse, gerade | |
| Connection (2) | offenes Ende | |
| Pin number | 4-polig | |
| Cable length | 0.5 m | |
| Colour | grün | |
| Material | PUR | |
| Degree of protection (IP) | IP67 | |
| LED display | No | |
| max. Voltage | 30 V | |
| Rated current | 4 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
