70 3481 288 08 | binder
Sensor actuator cable, M12-flange plug, straight to open end, 8 pole, 0.5 m, PUR, black, 2 A, 70 3481 288 08
Unit Price (€ / pc.)
37.5683 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
37.57 € *
Price list
Quantity
Price per unit*
1 pcs.
37.5683 €
10 pcs.
35.3073 €
25 pcs.
32.8440 €
50 pcs.
30.5354 €
*incl. VAT plus shipping costs
**Subject to prior sale

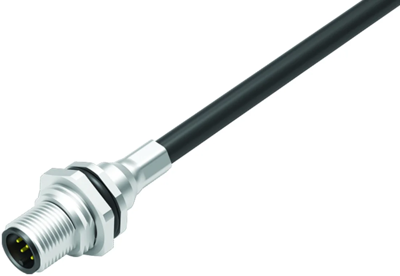

Sensor actuator cable, 70 3481 288 08, binder

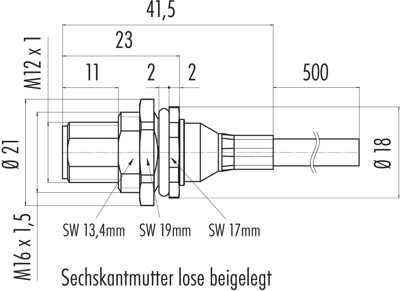

M12-A Male panel mount connector, Contacts: 8, shielded, with cable assembled, IP68, M16x1.5, PUR, black, 8 x 0.25 mm², front fastened, 0.5 m.
Technical specifications
| Connection (1) | M12-flange plug, straight | |
| Connection (2) | open end | |
| Colour | black | |
| Cable length | 0.5 m | |
| LED display | No | |
| Material | PUR | |
| max. Voltage | 30 V | |
| Rated current | 2 A | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
