70 3482 287 08 | binder

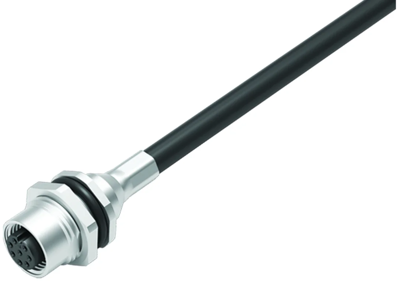

Sensor actuator cable, M12-flange socket, straight to open end, 8 pole, 0.5 m, PUR, black, 2 A, 70 3482 287 08
Unit Price (€ / pc.)
37.9015 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
37.90 € *
Price list
Quantity
Price per unit*
1 pcs.
37.9015 €
10 pcs.
35.6286 €
25 pcs.
33.1415 €
50 pcs.
30.8210 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor actuator cable, 70 3482 287 08, binder

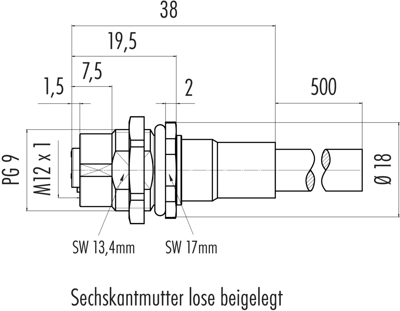

M12-A Female panel mount connector, Contacts: 8, shielded, with cable assembled, IP68, PG 9, PUR, 8 x 0.25 mm², front fastened, 0.5 m.
Technical specifications
| Anschluss (1) | M12-Flanschbuchse, gerade | |
| Anschluss (2) | offenes Ende | |
| Farbe | schwarz | |
| Kabellänge | 0.5 m | |
| LED-Anzeige | No | |
| Material | PUR | |
| max. Spannung | 30 V | |
| Nennstrom | 2 A | |
| Polzahl | 8-polig | |
| Schutzart (IP) | IP68 |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
