70 3482 785 08 | binder
Sensor actuator cable, M12-flange socket, straight to open end, 8 pole, 0.5 m, PUR, black, 1.5 A, 70 3482 785 08
Unit Price (€ / pc.)
37.9015 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
37.90 € *
Price list
Quantity
Price per unit*
1 pcs.
37.9015 €
10 pcs.
35.6286 €
25 pcs.
33.1415 €
50 pcs.
30.8210 €
*incl. VAT plus shipping costs
**Subject to prior sale

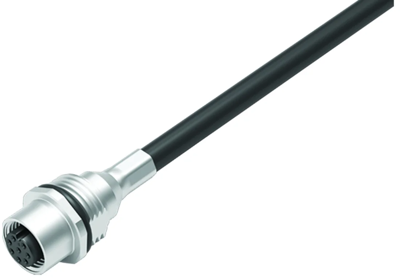

Sensor actuator cable, 70 3482 785 08, binder

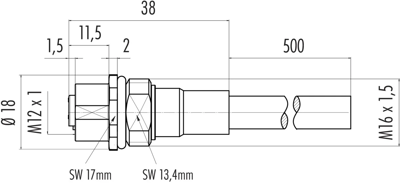

M12-A Female panel mount connector, Contacts: 8, 6.0 mm, shielded, with cable assembled, IP68, M16x1.5, PUR, 8 x 0.25 mm², 0.5 m.
Technical specifications
| Connection (1) | M12-Flanschbuchse, gerade | |
| Connection (2) | offenes Ende | |
| Pin number | 8-polig | |
| Cable length | 0.5 m | |
| Colour | schwarz | |
| Material | PUR | |
| Degree of protection (IP) | IP68 | |
| LED display | No | |
| max. Voltage | 30 V | |
| Rated current | 1.5 A |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
