76 0531 1011 00008-0200 | binder

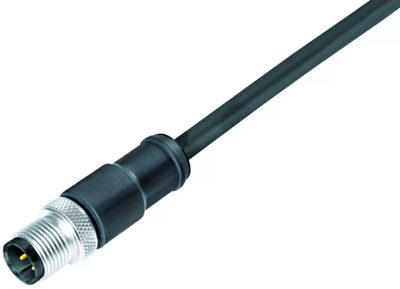

Sensor actuator cable, M12-flange plug, straight to open end, 8 pole, 0.2 m, 2 A, 76 0531 1011 00008-0200
Unit Price (€ / pc.)
22.6814 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
22.68 € *
Price list
Quantity
Price per unit*
1 pcs.
22.6814 €
10 pcs.
22.0031 €
50 pcs.
17.9690 €
100 pcs.
12.8520 €
2000 pcs.
10.6148 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male cable connector, 77 3529 0000 50704-0200, binder
M12 Male cable connector, Contacts: 4, shielded, moulded on the cable, IP67, UL, PUR, black, 4 x 0.34 mm², 2 m.
Technical specifications
| Connection (1) | M12-flange plug, straight | |
| Connection (2) | open end | |
| Cable length | 0.2 m | |
| LED display | No | |
| max. Voltage | 300 V | |
| Rated current | 2 A | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
