76 0532 1011 00008 0200 | binder

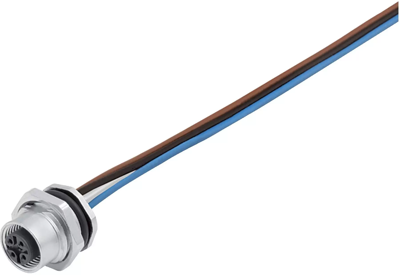

Sensor actuator cable, M12-flange socket, straight to open end, 8 pole, 0.2 m, 2 A, 76 0532 1011 00008 0200
Unit Price (€ / pc.)
21.2653 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
21.27 € *
Price list
Quantity
Price per unit*
1 pcs.
21.2653 €
10 pcs.
19.9920 €
50 pcs.
18.7901 €
100 pcs.
17.6596 €
*incl. VAT plus shipping costs
**Subject to prior sale
Panel mount connector, 76 0532 1011 00008-0200, Franz Binder
M12-A Female panel mount connector, Contacts: 8, unshielded, single wires, IP68/IP69K, UL, PG 9, front fastened.
Technical specifications
| Connection (1) | M12-flange socket, straight | |
| Connection (2) | open end | |
| Cable length | 0.2 m | |
| LED display | No | |
| max. Voltage | 30 V | |
| Rated current | 2 A | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP68/IP69K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
