76 6319 1111 00008-0200 | binder

Sensor actuator cable, M8-flange plug, straight to open end, 8 pole, 0.2 m, 1.5 A, 76 6319 1111 00008-0200

Order No.: 70P1171
EAN: 4099891660215
MPN:
76 6319 1111 00008-0200
Series: 718
binder

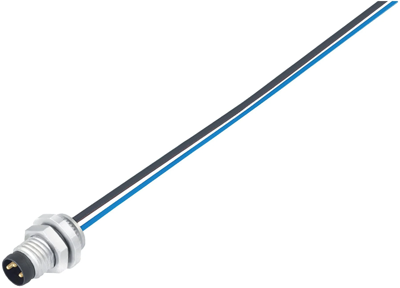

76 6319 1111 00008-0200 binder Sensor-Actuator Cables Image 1
76 6319 1111 00008-0200 binder Sensor-Actuator Cables Image 2
Image may differ
Unit Price (€ / pc.)
20.5751 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
20.58 € *
Price list
Quantity
Price per unit*
1 pcs.
20.5751 €
10 pcs.
19.3375 €
50 pcs.
18.1713 €
100 pcs.
17.0884 €
*incl. VAT plus shipping costs
**Subject to prior sale

Sensor actuator cable, 76 6319 1111 00008-0200, binder

M8 Male panel mount connector, Contacts: 8, unshielded, single wires, IP67, UL, front fastened.

Technical specifications
Connection (1) M8-flange plug, straight
Connection (2) open end
Cable length 0.2 m
LED display No
max. Voltage 30 V
Rated current 1.5 A
Pin number 8 pole
Degree of protection (IP) IP67
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
