77 0690 0000 50703-0500 | binder

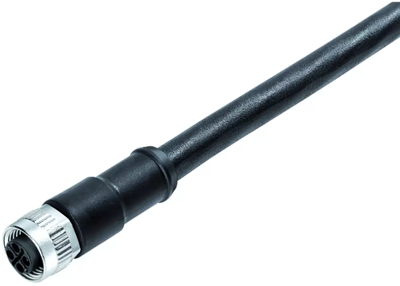

Sensor actuator cable, M12-cable socket, straight to open end, 2 pole + PE, 5 m, PUR, black, 12 A, 77 0690 0000 50703-0500
Unit Price (€ / pc.)
43.2446 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
43.24 € *
Price list
Quantity
Price per unit*
1 pcs.
43.2446 €
10 pcs.
41.0788 €
25 pcs.
38.6155 €
50 pcs.
35.9142 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor actuator cable, 77 0690 0000 50703-0500, binder

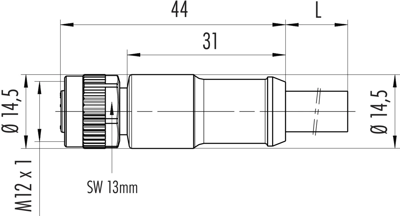

M12-S Female cable connector, Contacts: 2+PE, unshielded, moulded on the cable, IP68, PUR, black, 3 x 1.50 mm², 5 m.
Technical specifications
| Connection (1) | M12-cable socket, straight | |
| Connection (2) | open end | |
| Colour | black | |
| Cable length | 5 m | |
| LED display | No | |
| Material | PUR | |
| max. Voltage | 630 V | |
| Rated current | 12 A | |
| Pin number | 2 pole + PE | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
