77 1430 0000 50004-0500 | binder
Sensor actuator cable, 7/8"-cable socket, straight to open end, 4 pole, 5 m, PUR, black, 10 A, 77 1430 0000 50004-0500
Unit Price (€ / pc.)
42.7924 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
42.79 € *
Price list
Quantity
Price per unit*
1 pcs.
42.7924 €
10 pcs.
40.6504 €
25 pcs.
38.2109 €
50 pcs.
35.5453 €
*incl. VAT plus shipping costs
**Subject to prior sale

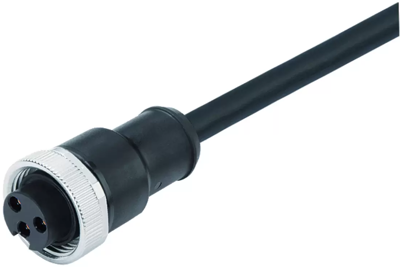

Sensor actuator cable, 77 1430 0000 50004-0500, binder

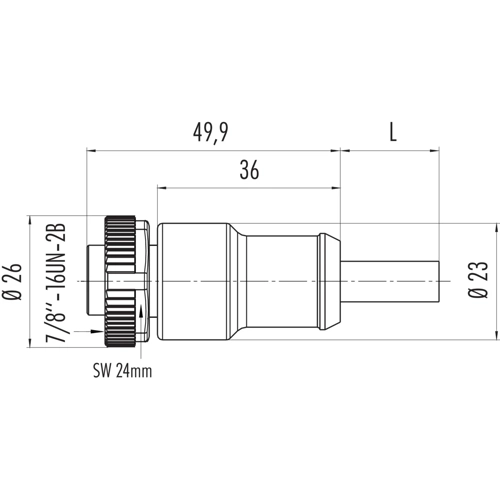

7/8" Female cable connector, Contacts: 4, unshielded, moulded on the cable, IP68, UL, PUR, black, 4 x 1.50 mm², 5 m.
Technical specifications
| Anschluss (1) | 7/8"-Kabeldose, gerade | |
| Anschluss (2) | offenes Ende | |
| Farbe | schwarz | |
| Kabellänge | 5 m | |
| LED-Anzeige | No | |
| Material | PUR | |
| max. Spannung | 300 V | |
| Nennstrom | 10 A | |
| Polzahl | 4-polig | |
| Schutzart (IP) | IP68 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
