Sensor actuator cable, 7/8"-cable socket, straight to open end, 5 pole, 10 m, PUR, black, 9 A, 77 1430 0000 50005-1000
Unit Price (€ / pc.)
78.5043 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
78.50 € *
Price list
Quantity
Price per unit*
1 pcs.
78.5043 €
2 pcs.
75.3746 €
5 pcs.
72.3520 €
*incl. VAT plus shipping costs
**Subject to prior sale

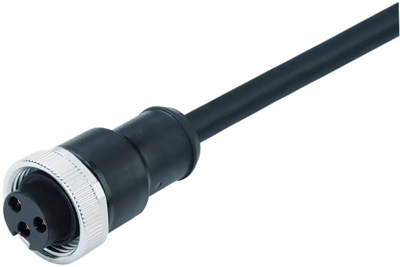

Sensor actuator cable, 77 1430 0000 50005-1000, binder

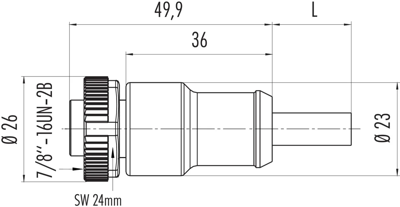

7/8" Female cable connector, Contacts: 5, unshielded, moulded on the cable, IP68, UL, PUR, black, 5 x 1.50 mm², 10 m.
Technical specifications
| Anschluss (1) | 7/8"-Kabeldose, gerade | |
| Anschluss (2) | offenes Ende | |
| Farbe | schwarz | |
| Kabellänge | 10 m | |
| LED-Anzeige | No | |
| Material | PUR | |
| max. Spannung | 300 V | |
| Nennstrom | 9 A | |
| Polzahl | 5-polig | |
| Schutzart (IP) | IP68 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
