77 3403 0000 20003-0200 | binder

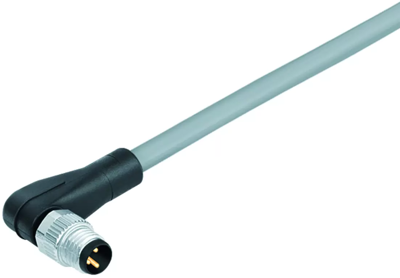

Sensor actuator cable, M8-cable plug, angled to open end, 3 pole, 2 m, PVC, gray, 4 A, 77 3403 0000 20003-0200
Unit Price (€ / pc.)
9.5676 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.57 € *
Price list
Quantity
Price per unit*
1 pcs.
9.5676 €
10 pcs.
8.8893 €
50 pcs.
8.2824 €
100 pcs.
7.4494 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor actuator cable, 77 3403 0000 20003-0200, binder
M8 Male angled connector, Contacts: 3, unshielded, moulded on the cable, IP67, UL, PVC, grey, 3 x 0.34 mm², 2 m.
Technical specifications
| Connection (1) | M8-cable plug, angled | |
| Connection (2) | open end | |
| Colour | gray | |
| Cable length | 2 m | |
| LED display | No | |
| Material | PVC | |
| max. Voltage | 60 V | |
| Rated current | 4 A | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
